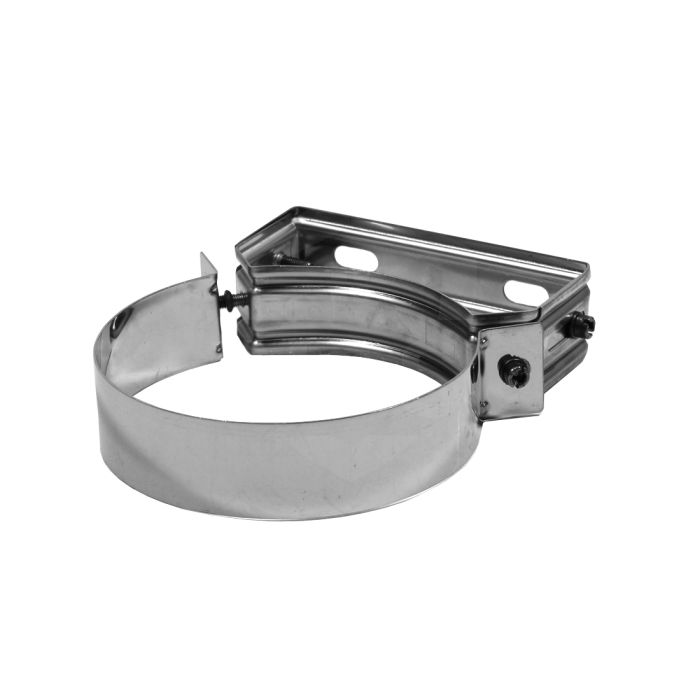

5" Wall Band (316 1mm)
Key Features:
- High-Quality Material: Crafted from premium 316 stainless steel, our wall bands ensure longevity and corrosion resistance.
- Optimal Thickness: With a 1mm thickness, these bands provide sturdy support without unnecessary bulk, allowing for a sleek and modern appearance.
- Easy Installation: Designed for hassle-free installation, saving you time and effort on your construction projects.
- Versatile Application: Suitable for a variety of structures, from residential buildings to commercial spaces, adding both functionality and style.
Enhance Your Structure with Single Skin 316 1mm Wall Band
Upgrade your construction projects with our premium Single Skin 316 1mm Wall Bands. Engineered for durability and aesthetic appeal, these bands offer unparalleled benefits for your structures.
Application:
The 316 stainless steel is designed primarily for high temperature applications in the domestic market for gas, oil, solid and multi-fuel installations. Appliances will burn with flue gas temperatures of up to 600°C for the 1mm, under continuous firing and is soot resistant.
This product is also suitable for use on some commercial applications.
Benefits You'll Love:
- Durable Performance: Ensure the longevity of your structures with the corrosion-resistant properties of 316 stainless steel.
- Sleek Design: The 1mm thickness provides the necessary support while maintaining a sleek and modern aesthetic for your project.
- Time-Saving Installation: Spend less time on installation and more time on what matters most with our easy-to-install wall bands.
- Enhanced Stability: Experience improved structural stability, giving you peace of mind for the long term.
Invest in the best for your construction projects. Our Single Skin 316 1mm Wall Bands combine functionality with style, ensuring your structures stand the test of time. Elevate your projects with these high-quality wall bands today!
| Component Type | Wall Supports |
|---|---|
| Dimensions |
|
| Designation: | EN 1856-1 T600 N1 D V2L50040 G100 |
| Installation Guide: | Installing Your ProductThe 316 should be installed (a minimum of 3 x diameter) from any combustible materials, e.g. 125mm pipe should be 375mm from combustible materials. Can be used as a substitute for a flexible flue liner. The 316 stainless steel must only be used to connect from the appliance to flexible liner or twin wall insulated system. It must NOT be used externally and where there is a risk of combustibles being placed next to the chimney, the minimum distances to combustibles must be maintained whether by a permanent enclosure or shield. Please refer to the Document J Building regulations for more information. The 316 should be fitted with socket uppermost, spigot (male end) downward to avoid condensate escaping. Each joint should be sealed with fire cement or high temperature silicone sealant to ensure a gas tight fit. Where 316 single wall flue passes through a brick internal wall, it is recommended a wall sleeve is used around the pipe. Provision for sweeping and inspections must be made. The chimney diameter should never be reduced to less than the diameter specified by the appliance manufacturer. An Ensure that adequate air is available for combustion. Components must NOT be modified for safety reasons. A chimney notice plate and carbon monoxide detector must be installed in the building, preferably in the same room as the appliance. The installation must be commissioned by a registered installer in-line with the Building Regulations (Document J). If there are any leaks or issues with the system, it must not be used until the problems have been rectified. Provisions must be made for condensate drainage where appropriate. Please refer to the Document J Building regulations for more information. |
| Recommended Fuels: | Gas, oil, solid and multi-fuel |
| Building Regulations : | We recommend that all installations are carried out by a qualified chimney installer. additional information on installation and requirements can be found below. |
| Material : | Stainless Steel |
