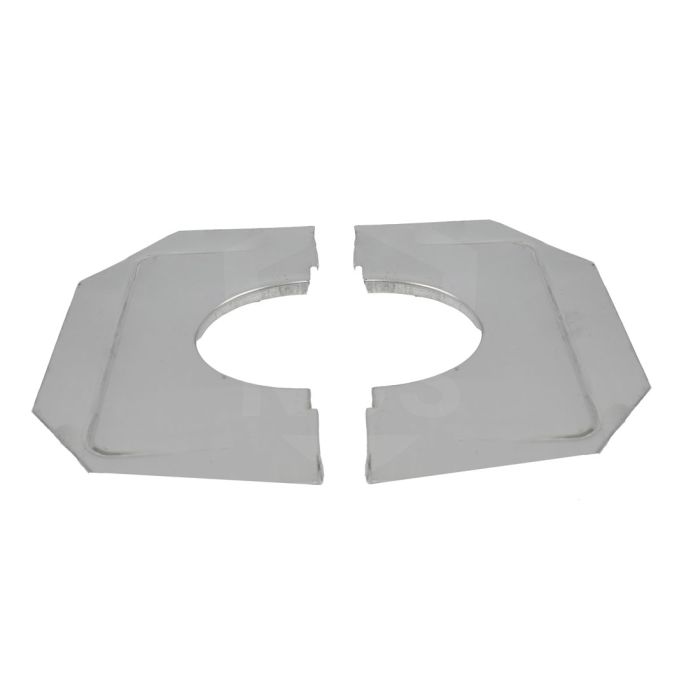

5" Gas Clamps and Plate
- 5"Clamp and Plate Combined
- Aluminium Construction
5" (125mm) Gas Clamps and Plate
To be used at the top of your stack to hold the gas liner in place
Once the liner is in place, slide the two plates around the liner at the point of termination and secure with the bolts that are provided
If you're fitting a terminal, we advise that you leave a minimum liner length of 4" so a terminal can be attached
Component Type | Wall Supports |
---|---|
Installation Guide: | Secure the top of the liner at the top of the stack using two piece plate and bolts provided. Once you have cut the liner at the top of the chimney stack, slide the two plates around the chimney liner at the point of termination and secure with bolts provided. The plate should now lay on the top of the chimney stack. If you are fitting a terminal, remember to leave about 3 inches of liner above the plate so you can secure it. |
Recommended Fuels: | Be used with gas or 28 Sec Oil fuels only |
Building Regulations : | We recommend that all installations are carried out by a qualified chimney installer. additional information on installation and requirements can be found below. |
Material : | Aluminium |
