7" Gather Hood Adaptor 300mm x 300mm
- 7" Gather Hood
- C/W Spigott to Fit Stainless Steel Flexible Flue Liner
- All in one Solution.

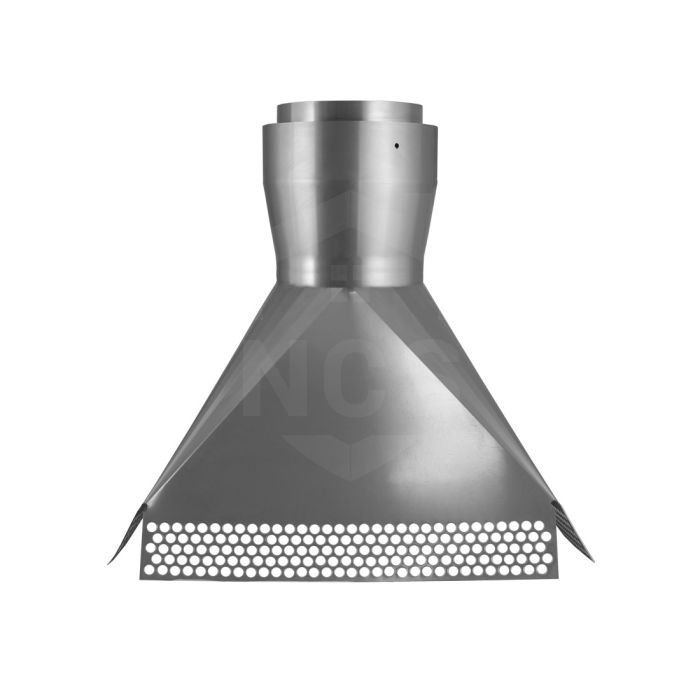

7" (175mm) Gather Hood Adaptor 300mm x 300mm
The gather unit is used at the base of the chimney where an open fire is situated
It has a 300mm x 300mm square base with mesh to assist whilst fixing it to the chimney stack
This item is used Mainly on open fires where a Flue Liner has been fitted :
Secure your Flue Liner to the top of the Gather Unit , just slide your liner into the top of the Gather Unit and secure with Self tapping Screws through the Holes on the Outsaide of the Adaptor , then just make the Joint good by inserting Fire Cement or Silicone Sealant to seal .
Drill through the Mesh on the Bottom of the Gather Unit 2-3 times on each straight Lenght of Mesh as these are the holes you will need to line Gather unit up into position , Drill holes into brick work insert Raw Plugs and secure using screws through the Mesh : in some cases you may need to use a washer to help stop the Screw from going through the Mesh .
If you can see any Gaps around your Gather Unit you will need to seal these with Fire Cement or High Temp Silicone Sealant.
|Recommended Fuels:||Wood, Gas, Oil, Occasional House Coals|
|Building Regulations :||
We recommend that all installations are carried out by a qualified chimney installer.
additional information on installation and requirements can be found below.
