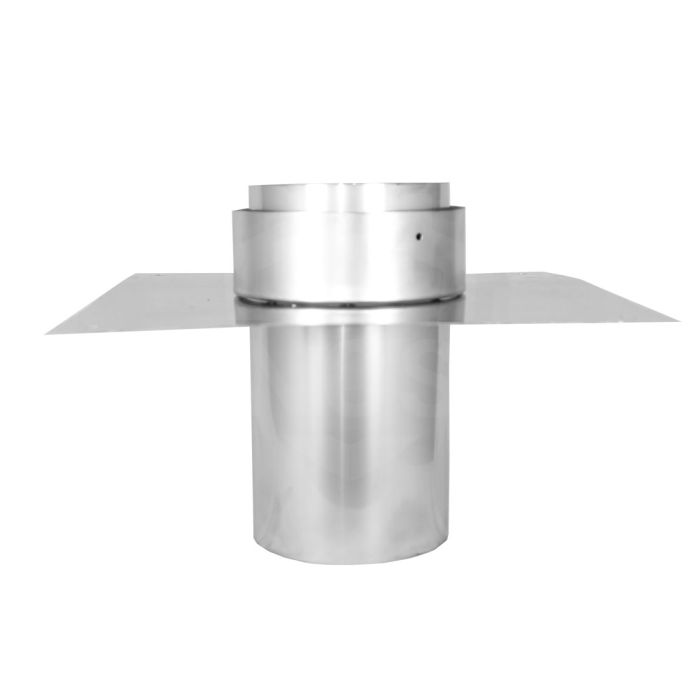

7" 150mm Register Plate Adaptor
- 7" Register Plate Adaptor
- 300mm x 300mm Centre Plate
- 316 Stainless Steel
- Can be Cut to Required Size
7" (175mm) Register Plate Adaptor
The register plate adaptor should be installed at the base of the chimney
It has a 6" connection on the underside of the plate to fit into your vitreous/stove pipe and above the 300mm x 300mm plate it has a 6" adaptor to connect directly to your flexible liner
Component Type | Register Plate |
---|---|
Dimensions | |
Installation Guide: | Firstly secure the Chimney Liner to the Adaptor . Slide the Chimney liner into the top of the adaptor and secure by inserting self tapping screws into the Holes provided on the outside skin of the Adaptor . Add some fire cement of Silicone Sealant to the joint to make sure your connection is sealed. Insert the Single Skin Spigott into your Stove / Appliance and once again seal with Fire Cement or High Temp Silicone Sealant. Do not worry if the Adaptor Is loose before sealing with Fire cement as All Adaptors are made to be universal to fit any of the 1,000.00 Stoves there are on the Market Today . |
Recommended Fuels: | Wood, Gas, Oil, Occasional House Coals |
Building Regulations : | We recommend that all installations are carried out by a qualified chimney installer. additional information on installation and requirements can be found below. |
