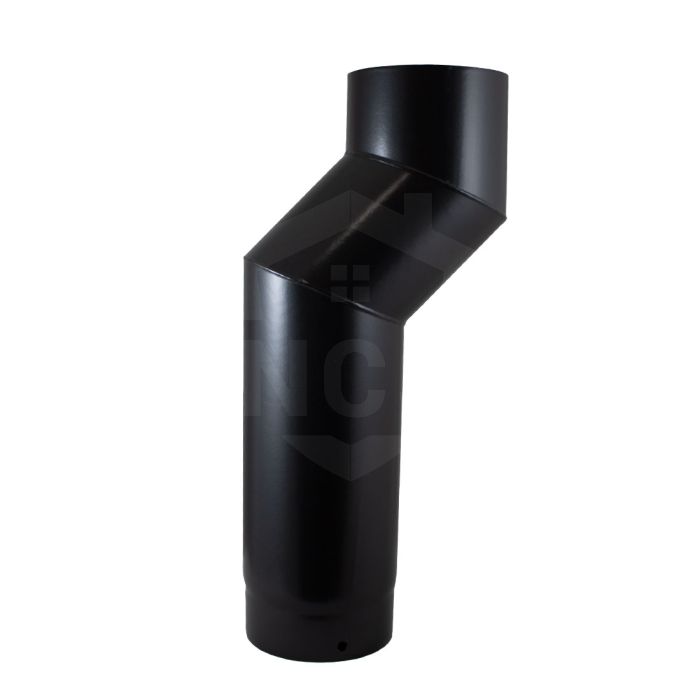

5" Offset Bend Stove Pipe
Offset flue pipe for use when an offset is needed in the flue run.
- 5" Premium Vitreous Enamel Offset Stove Flue Pipe Bend
- 10 Year manufacturer Warranty
- Used for Burning Wood, Gas, Oil, Low Sulphur Coal, Pellets
- 1.2mm Thick
- Matt Black Enamel Coated Offset Stove Pipe
5" Offset Vitreous Stove Flue Pipe
This component is used when a offset is needed in the flue run is required. This bend minimises the resistance to the flow of flue gases due to the angle created with the vertical axis.
|EN 1856-2 T600 N1 W V2 L80100 G450NM
You should not install any piece of Vitreous with-in 3 x the internal diameter from combustible material eg: plaster board ceilings/wood etc, a 6" diameter piece of Vitreous should be 18" away from combustible materials ,
Each joint made should be sealed with Fire cement. Vitreous Flue pipe is only to be used as a connecting piece of flue between the appliance (EG: woodstove) and the flue liner or chimney stack.
Please make sure you buy the correct Adaptor to connect your Stove pipe to Flexible liner or Twin Wall Flue System.
|Gas, Oil, Solid Fuels, Wood, Pellets, Peat
|Building Regulations :
We recommend that all installations are carried out by a qualified chimney installer.
additional information on installation and requirements can be found below.
